EBC USR Grooved Brake Discs Ford Lincoln

EBC USR Slotted Brake Rotors Ford Lincoln | EBG Performance

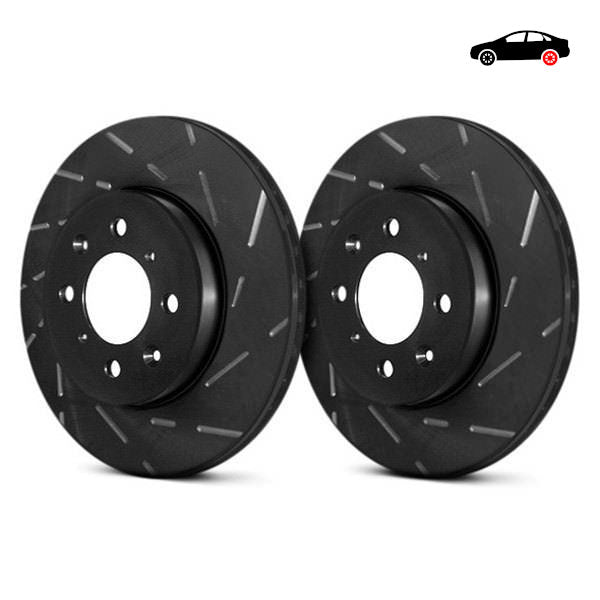

EBC USR brake rotors are slotted replacements for factory rotors, maintaining their standard mounting dimensions. Shallow grooves on the working surface accelerate the removal of water, contaminants, and gases generated between the pad and the rotor, helping maintain stable friction in varying conditions. The design ensures quieter operation than the more deeply slotted Turbo Groove rotors, while the anti-corrosion coating protects non-working components from rust. Depending on the generation, the rotors have a black GEN 1 or gray GEN 3 finish.

Compatibility

• Ford F150 4.2 (2WD) 5 LUG
• Ford F150 4.2 (4WD) 5 LUG
• Ford F150 4.6 (2WD) 5 LUG
• Ford F150 4.6 (4WD) 5 LUG
• Ford EXPEDITION 4.6 2WD
• Ford EXPEDITION 4.6 4WD
• Lincoln BLACKWOOD 5.4
• Ford F150 5.4 (2WD) 5 LUG
• Ford F150 5.4 (2WD) HARLEY DAVIDSON 5 LUG
• Ford F150 5.4 (4WD) 5 LUG
• Lincoln NAVIGATOR 5.4 2WD
• Ford EXPEDITION 5.4 2WD
• Ford EXPEDITION 5.4 4WD
• Lincoln NAVIGATOR 5.4 4WD
• Ford F150 5.4 LIGHTNING

Parameters

• Type: Slotted
• Solid/Vented: Solid
• Number of holes: 5
• Diameter (inches): 13.1
• Diameter (mm): 334
• Height (mm): 56
• Thickness (mm): 14
• Minimum thickness (mm): 12
• PCD (mm): 135
• Center bore diameter (mm): 87.4
• Manufacturer: EBC Brakes
• Catalog number: V02017378

Brand new, unused part.
