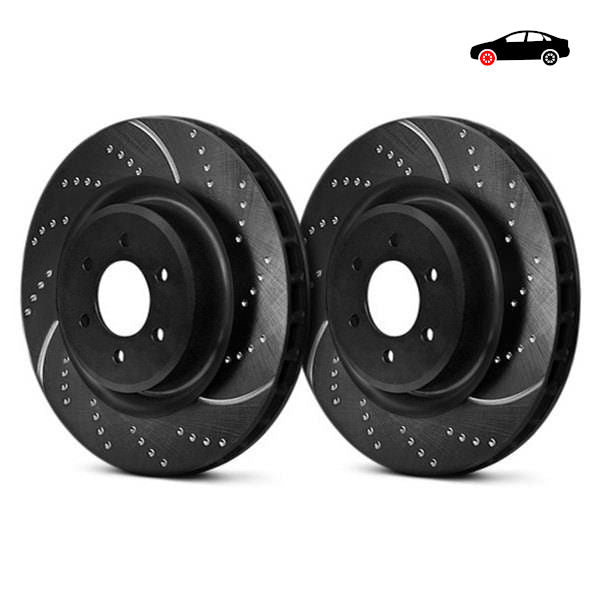

EBC Grooved and drilled GD sports brake discs Chevrolet Dodge GMC

EBC Sport Drilled and Grooved Brake Discs GD Chevrolet Dodge GMC | EBG Performance

EBC GD brake discs are sport discs made of grey cast iron, featuring arc-shaped grooves and blind-drilled holes. The enlarged grooves aid in dissipating heat, dust, debris, and gases generated during intense braking, reducing the risk of pad fade. The blind holes facilitate gas evacuation during high-speed braking without weakening the disc structure as much as through-drilled holes. The material and finished components undergo quality control, ensuring high resistance to thermal and mechanical stresses.

Compatibility

• Chevrolet K3500 DRW
• Dodge RAM 3500 PICK-UP 5.9 2WD/4WD
• Dodge RAM 2500 PICK-UP 5.9 4WD 8800LB GVW
• Dodge RAM 3500 PICK-UP 8.0 4WD
• Dodge RAM 2500 PICK-UP 8.0 4WD 8800LB GVW
• GMC K3500 DRW
• GMC K35 DRW

Parameters

• Type: Drilled and Grooved
• Solid/Vented: Vented
• Number of holes: 8
• Diameter (inches): 12.5
• Diameter (mm): 317
• Height (mm): 70
• Thickness (mm): 39
• Minimum thickness (mm): 37
• PCD (mm): 165
• Center bore diameter (mm): 137.4
• Manufacturer: EBC Brakes
• Catalog number: V02016143

Brand new, unused part.
