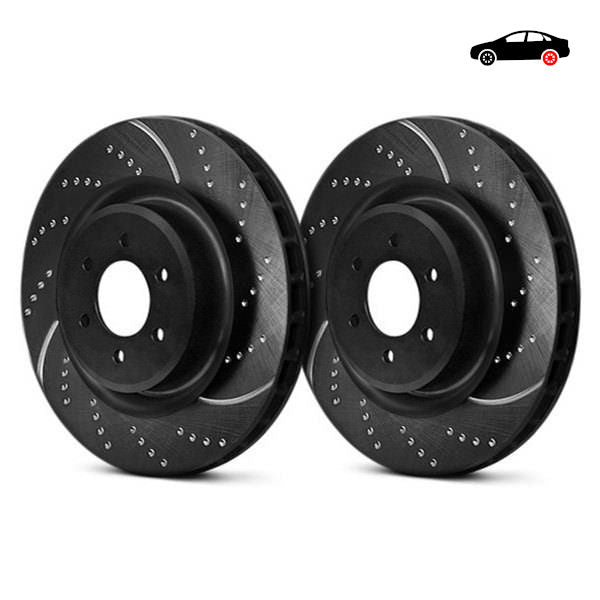

EBC GD Sport Drilled and Grooved Brake Discs Ford

EBC Sport GD Series Slotted and Dimpled Brake Rotors Ford | EBG Performance

EBC GD brake rotors are sport-grade cast iron rotors, featuring curved slots and non-through dimples. The widened grooves assist in dissipating heat, dust, debris, and gases generated during intense braking, reducing the risk of brake pad-to-rotor performance degradation. The non-through dimples facilitate gas removal during high-speed braking without weakening the rotor structure as much as through-drilled holes. Both the material and finished components undergo quality control to ensure high resistance to thermal and mechanical stresses.

Compatibility

• Ford F250 (INC SUPER DUTY) 5.4 (2WD)
• Ford F250 (INC SUPER DUTY) 5.4 (4WD)
• Ford F350 (INC SUPER DUTY) 5.4 SRW 2WD
• Ford F350 (INC SUPER DUTY) 5.4 SRW 4WD
• Ford F250 (INC SUPER DUTY) 6.0 TD (2WD)
• Ford F250 (INC SUPER DUTY) 6.0 TD (4WD)
• Ford F250 (INC SUPER DUTY) 6.0 TD (HARLEY DAVIDSON)
• Ford F350 (INC SUPER DUTY) 6.0 TD (HARLEY DAVIDSON)
• Ford F350 (INC SUPER DUTY) 6.0 TD SRW 2WD
• Ford F350 (INC SUPER DUTY) 6.0 TD SRW 4WD
• Ford F250 (INC SUPER DUTY) 6.2 (4WD)
• Ford F350 (INC SUPER DUTY) 6.2 SRW 4WD
• Ford F250 (INC SUPER DUTY) 6.4 TD (2WD)
• Ford F250 (INC SUPER DUTY) 6.4 TD (4WD)
• Ford F350 (INC SUPER DUTY) 6.4 TD SRW 4WD
• Ford F250 (INC SUPER DUTY) 6.7 TD (4WD)
• Ford F350 (INC SUPER DUTY) 6.7 TD SRW 4WD
• Ford F250 (INC SUPER DUTY) 6.8 (2WD)
• Ford F250 (INC SUPER DUTY) 6.8 (4WD)
• Ford F350 (INC SUPER DUTY) 6.8 SRW 2WD
• Ford F350 (INC SUPER DUTY) 6.8 SRW 4WD

Parameters

• Type: Dimpled and Slotted
• Solid/Vented: Vented
• Number of Holes: 8
• Diameter (inches): 13.4
• Diameter (mm): 340
• Height (mm): 126
• Thickness (mm): 34
• Minimum Thickness (mm): 32
• Pitch Circle Diameter (mm): 169.9
• Centering Hole Diameter (mm): 126.7
• Manufacturer: EBC Brakes
• Catalog Number: V02016272

Part is brand new, unused.
