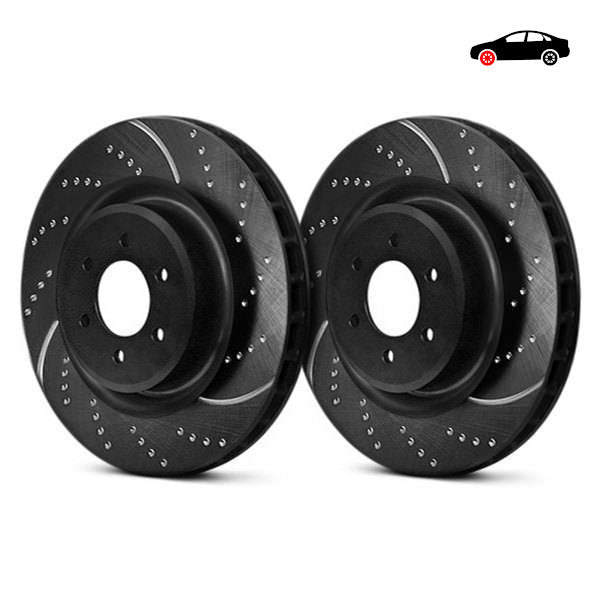

EBC Sport Slotted and Drilled Brake Discs GD Mazda Ford

EBC GD Sport Drilled and Grooved Brake Discs Mazda Ford | EBG Performance

EBC GD brake discs are sports discs made of grey cast iron, featuring curved grooves and blind drilled holes. Widened grooves facilitate the dissipation of heat, dust, contaminants, and gases generated during intense braking, reducing the risk of impaired pad-to-disc interaction. Blind drilled holes help to remove gases during high-speed braking without weakening the disc structure as much as through-drilled holes. The material and finished components undergo quality control, ensuring high resistance to thermal and mechanical loads.

Compatibility

• Mazda NAVAJO 4.0 (4WD)
• Ford EXPLORER 4.0 4WD
• Ford EXPLORER 4.0 4WD (ABS)

Parameters

• Type: Drilled and Grooved
• Solid/Vented: Vented
• Number of holes: 5
• Diameter (inches): 10.9
• Diameter (mm): 276
• Height (mm): 63
• Thickness (mm): 22
• Minimum thickness (mm): 20
• PCD (mm): 114.3
• Manufacturer: EBC Brakes
• Part number: V02016103

Brand new, unused part.
