EBC GD Sport Slotted and Drilled Brake Discs Mitsubishi Chrysler

EBC Sport Drilled and Slotted Brake Discs GD Mitsubishi Chrysler | EBG Performance

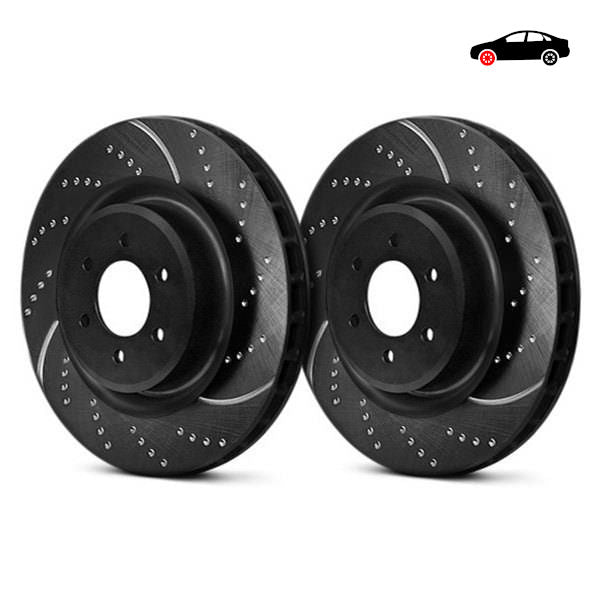

EBC GD brake discs are sport grey cast iron discs featuring arched slots and blind drilled holes. The widened grooves aid in dissipating heat, dust, debris, and gases generated during intense braking, reducing the risk of friction fade. The blind holes facilitate gas removal during high-speed braking without weakening the disc structure as much as through-drilled holes. The material and finished components undergo quality control, ensuring high resistance to thermal and mechanical loads.

Compatibility

• Mitsubishi GALANT 2WD 2.0
• Mitsubishi GALANT 2WD 2.4
• Mitsubishi ECLIPSE 2WD 2.4
• Mitsubishi OUTLANDER 2.4
• Mitsubishi ECLIPSE SPYDER 2.4
• Mitsubishi LANCER 2.4 RALLIART
• Mitsubishi LANCER SPORTBACK 2.4 RALLIART (5 LUG)
• Mitsubishi ECLIPSE 2WD 3.0
• Chrysler SEBRING COUPE 3.0
• Mitsubishi GALANT 2WD 3.0
• Mitsubishi ECLIPSE SPYDER 3.0
• Dodge STRATUS COUPE 3.0

Parameters

• Type: Drilled and Slotted
• Solid/Vented: Vented
• Number of Holes: 5
• Diameter (inches): 10.9
• Diameter (mm): 276
• Height (mm): 45.7
• Thickness (mm): 26
• Minimum Thickness (mm): 24
• Pitch Circle Diameter (mm): 114.3
• Centering Hole Diameter (mm): 69
• Manufacturer: EBC Brakes
• Catalog Number: V02016144

Brand new, unused part.
